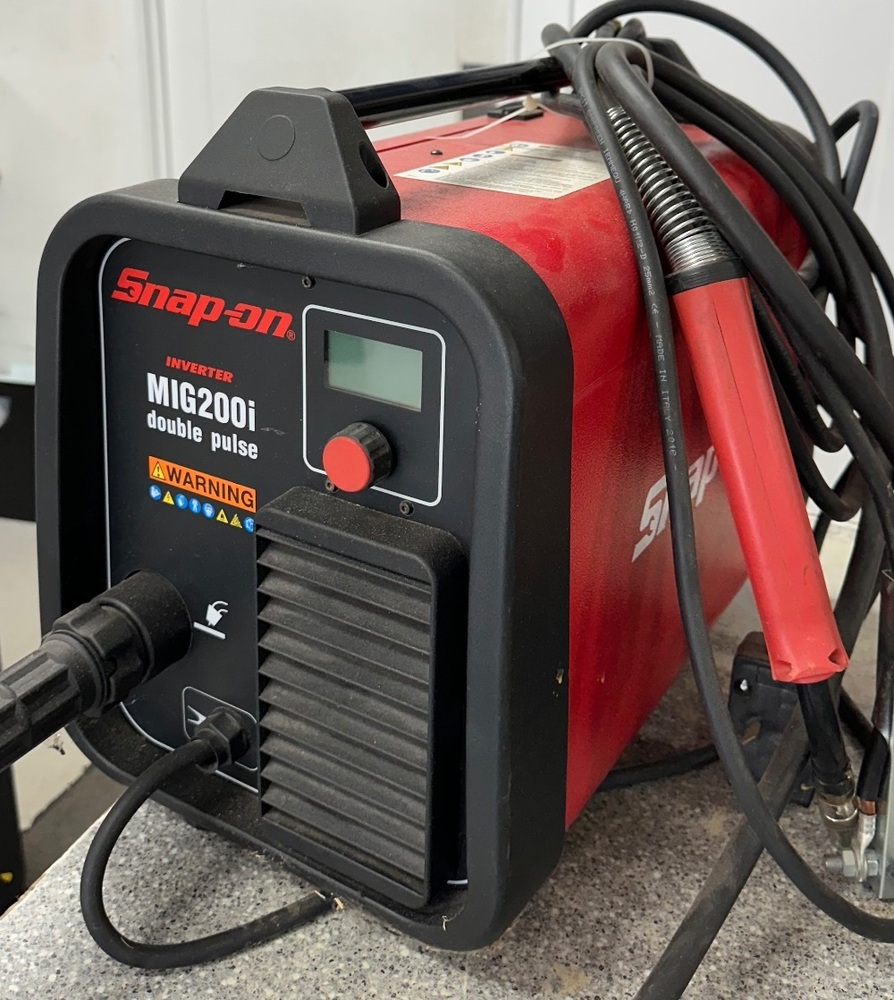

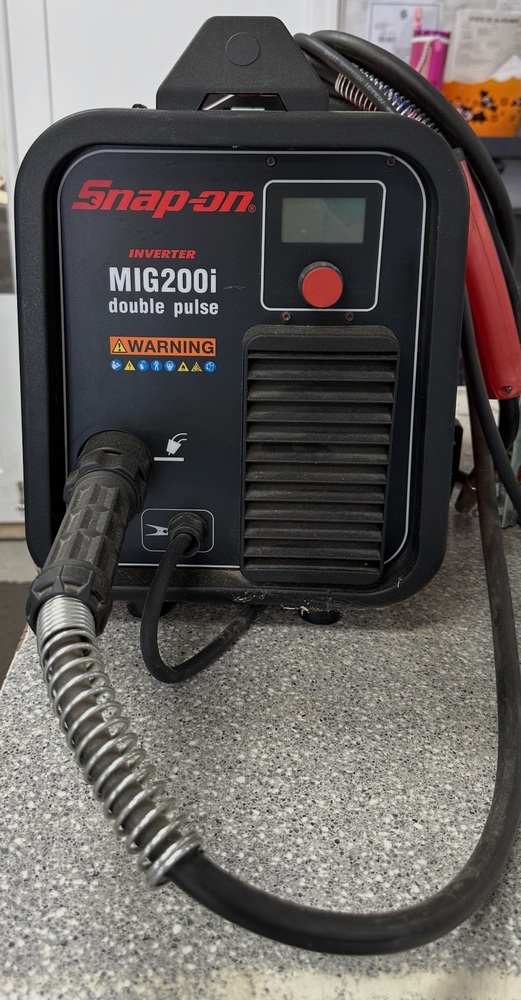

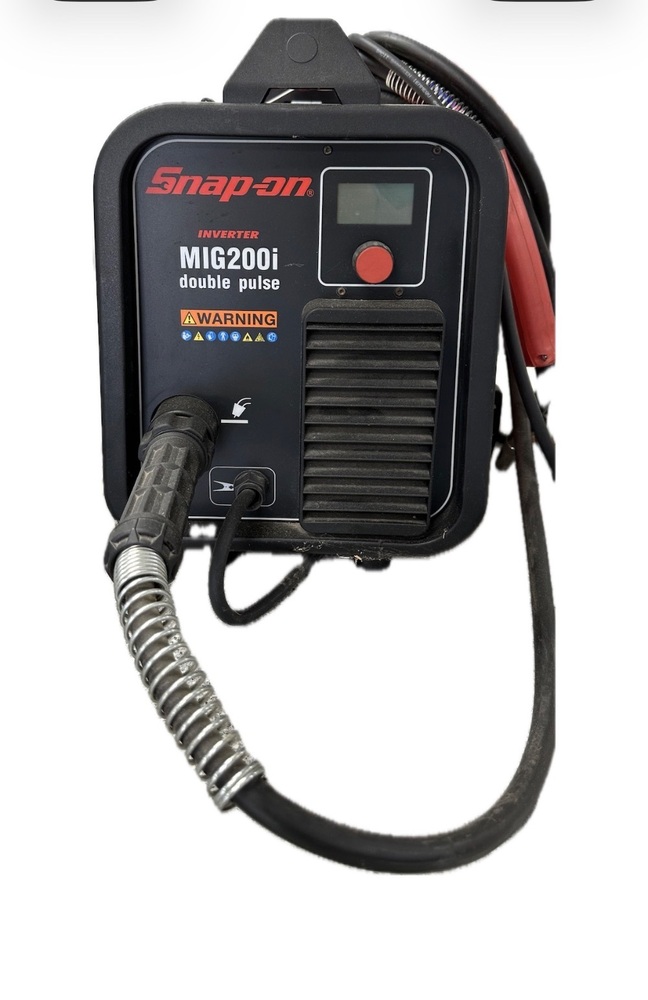

MIG 200i

Weld Like a Pro with the Snap-on MIG200i.
Engineered for serious metalworkers, the Snap-on MIG200i combines industrial-grade performance with intuitive controls for flawless welds every time. With dual-voltage capability (120V/230V), infinite voltage and wire speed adjustment, and a compact, portable frame, this welder delivers the versatility you need on the job or in the garage. Whether you're working on automotive repairs, fabrication, or heavy-duty projects, the MIG200i offers smooth arc starts, minimal spatter, and consistent weld penetration—backed by Snap-on’s legendary reliability.

SELLS FOR 10,999.00 NEW ON THE SNAP ON TRUCK.

SHIPS TO LOWER 48 STATES.

Feature Specification
Model MIG200i Synergic Double?Pulse Inverter MIG Welder
Power Input 230?V AC ±15%, single?phase, 50/60?Hz
Rated Input Current ~26?A
Output Current Range 20–200?A
Duty Cycle 100?% @?120?A
Weight (Unit) 46?lb (21?kg)
Shipping Weight ~50?lb (23?kg)
Dimensions (H?×?W?×?D) 16″ × 11″ × 19″ (406?×?280?×?482?mm)

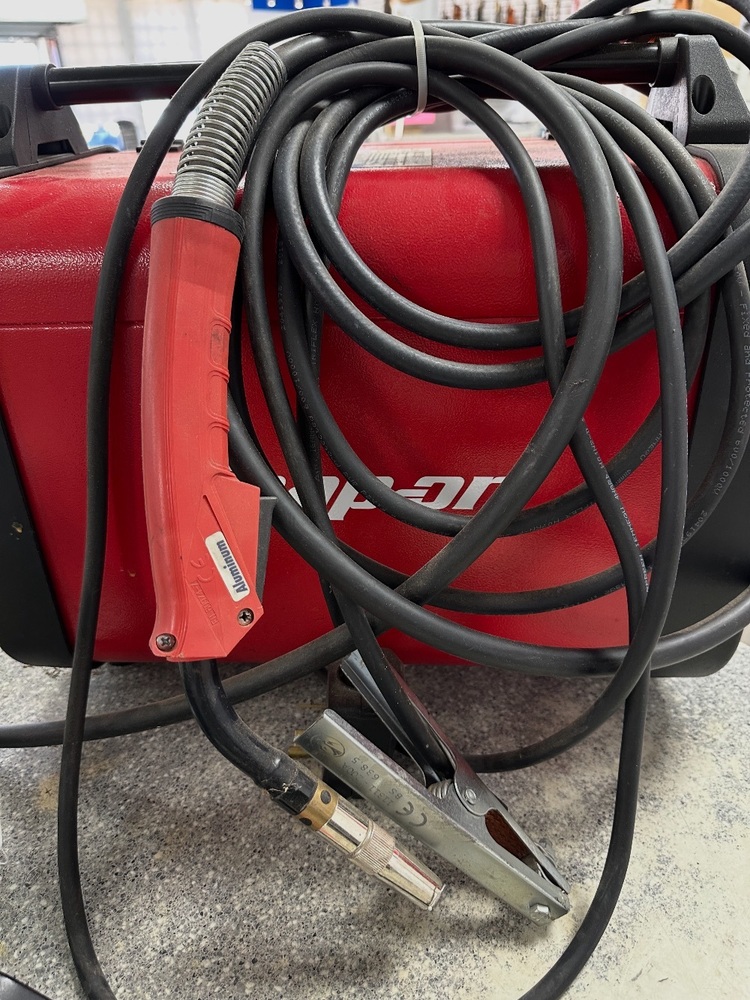

Torch Included 10?ft standard aluminum torch
Ground Cable 10?ft (3?m)
Synergic Control Inverter, preset curves for steel, stainless, aluminum, boron steels
Pulse Modes Pulse and double?pulse for thin?material heat control
Controls & Display Single-knob interface + LCD showing current, voltage, wire speed, thickness, wire diameter
Adjustable Parameters Start current, slope time, crater fill, arc length, inductance, burnback, soft start, pre/post gas, spot weld time
Weldable Materials Steel, stainless steel, aluminum alloys (e.g., 5354, 4047, 5554), high?strength and boron steels
Coolant/Gas Regulator Included regulator-flowmeter

$4,000.00

MSRP $10,999.00



1 in stock at 830a Us Highway 231 South, Troy, AL (Phone # 334-808-1000)

  • SNAP-ON
  • MIG 200i
  • Used
  • 1 in stock at 830a Us Highway 231 South, Troy, AL (Phone # 334-808-1000)
  • This Item Is Local Pickup Only
  • No Returns Accepted
